Engineered Footing Void Forms for Expansive Soil Conditions

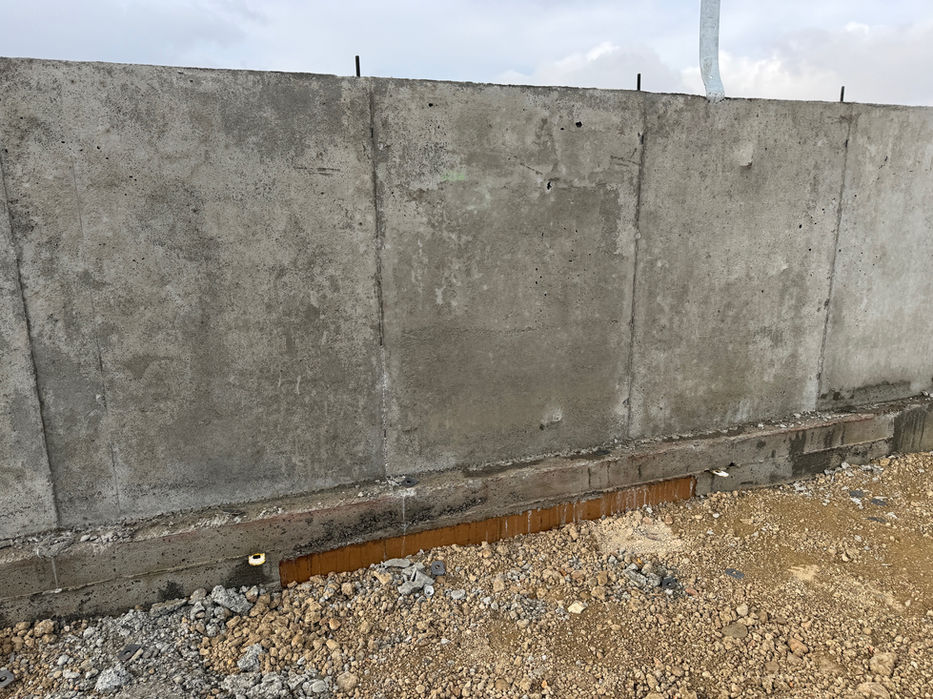

Footing void forms are a vital part of structural footings that create required periodic void spaces, when building in expansive soil environments. The voided spaces are areas where uplifting soils can move into without transferring pressure to the concrete footing, helping foundations perform as designed over the long term.
At Carton Forms LLC, our footing forms are hand-assembled in Denver, Colorado, built with an understanding of real-world soil behavior, engineering intent, and jobsite conditions.
Void protection at the footing level isn’t optional. It’s foundational.
Why Use Footing Void Forms
Structural footings are designed to support loads, not absorb soil movement. In expansive soils, footing void forms provide the segmental separation engineers rely on to protect concrete footings from uplift, cracking, and unintended stress.
Footing forms are used to:
-
Create void spaces at structural footings
-
Reduce upward pressure from expanding soils
-
Maintain proper load transfer into bearing soils
-
Help foundations perform as intended
Used correctly, footing void forms help eliminate long-term foundation issues before they start.
Applications
Footing void forms are commonly used in:
-
Continuous strip footings
-
Low wall and grade beam footings
-
Foundation perimeter footings
-
Residential and commercial intermittent structural foundations
-
Projects requiring void protection below grade beams are designed to be placed directly on expansive soil, a void form is typically part of the engineered solution.
Installation Considerations
Proper installation is critical to footing form performance. Common best practices include:
-
Store forms off the ground and keep dry prior to installation
-
Position on smooth, even subgrade
-
Install at engineered locations to maintain the needed void space
-
Protect from puncture or point loads
-
Prevent concrete from infiltrating exposed ends
-
Use protection board on all carton form surfaces
If conditions on site differ from standard details, we’re available to discuss products and installation options before the pour.
Compatible With Protection Board and Soil Retainers
Footing void forms are often used in combination with:
-
Protection Cover Board to shield forms during reinforcement and concrete placement
-
Plastic Soil Retainers to prevent lateral soil movement into the void space
Together, these components help maintain clean, functional void conditions at structural footings.
Why Contractors and Dealers Use Carton Forms
-
Built to meet engineering specifications
-
Predictable performance by design
-
Hand-assembled quality
-
Consistent sizing and strength
-
Technical experience you can lean on
-
Reliable delivery and clear communication
Nothing is assumed. Everything is earned.
Availability & Support
Carton Forms footing void forms are available through local concrete supply dealers. If questions come up around specifications, or take-offs, we work alongside our dealers to offer optional product and installation methods, that help ensure the right solution is quoted and supplied.
